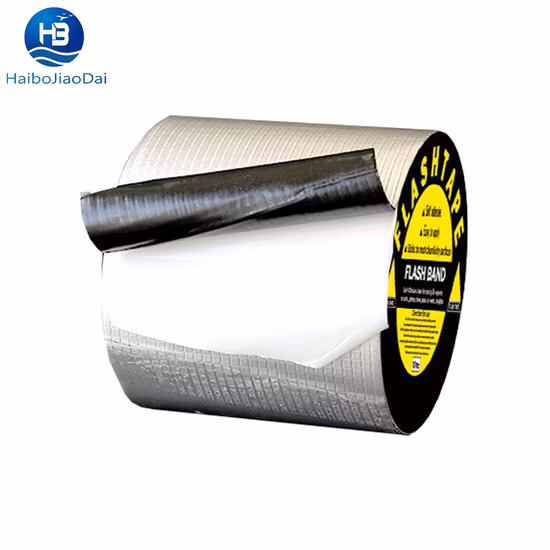

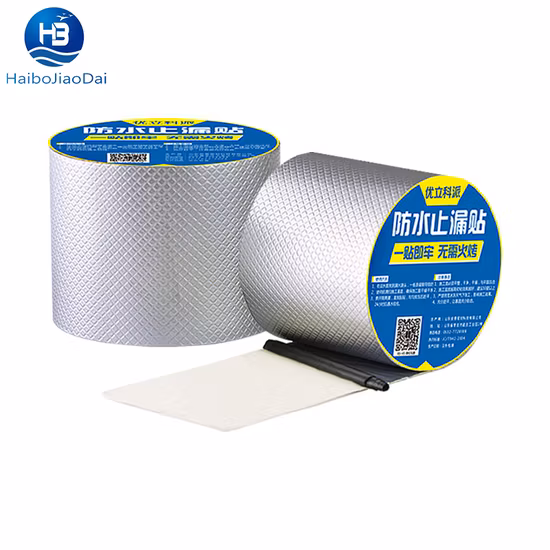

High Quality Single Sided Custom Color Vacuum Bag Butyl Sealant Tape with Natural Butyl Rubbe for Leak Repair, Pipe, Wall, RV, Camper, Easy to Paste

Overview

Basic Info.

Model NO.	HBB-B1MM
Ceiling Tile Shape	Roll
Material	Rubber
Thickness	1.2mm
Ceiling Tile Type	Butyl Aliuminum Foil
Surface Treatment	Film Coated
Function	Anti-static, Fireproof, Heat Insulation, Sound-Absorbing, Waterproof
Certification	ISO, MSDS, CE
Color	Silver Gery
Usage	Outdoor, Indoor
Usage Scenario	Roofing Engineering,Color Steel,Steel Structure an
Performance	Fireproof, Heat Insulation, Sound-Absorbing, Water
Paper Core	76mm
Width	5cm10cm15cm20cm30cm50cm100cm
Length	5m10m
Transport Package	Carton
Specification	10mm*10m
Trademark	HB
Origin	Qingdao, China
HS Code	3919109900
Production Capacity	10000000pieces/Year

Packaging & Delivery

Package Size 20.00cm * 16.00cm * 25.00cm Package Gross Weight 6.000kg

Product Description

Product Description

The butyl waterproof sealing tape,which is made from butyl rubber,polyisbutene and other raw materials,is an environmental solvent-free and self-adhesive sealing material that is produced on the base of the special formula,new compounding vulcanization technological and high polyer material and by means of special technological process

Specification

The product are provided with single face one (covered with aluminum foil and non-woven fabrics,PE film ,ect)and double face one (with no base material ,and with gridding cloth)

Thickness:0.5mm-3mm,maximum width is 1m,it can also be customized according to the customer's demand

ITEM	MEASUREMENT	TEST METHOD
Tensile Strength	0.7kgf/cm2	JIS K 6301 500MM/MIN
Water resistance	No deterioration ,No fat separation,Water absorption>0.028	20ºC water, 168 Hr
Heat resistance	no hanging,No fat separation, No deterioration	5mm*5mm*100mm on Vertical steel plate,110ºC 168Hr
Holding power	slide is 0.5mm	2mm*50mm*50mm on Vertical steel plate,100ºC 168Hr
Cold resistence	no craking, no slide	5mm*5mm*100mm on Vertical steel plate,-30ºC 24Hr
Offensive smell	on offensive smell	10g in 1 liter glass tubes, 24Hr

Main uses

For the waterproofing work of the roofing ,underground and structural construction joint of new projects,as well as the lap joint and sealing of high polymer waterproof roll

For the sealing and waterproofing work of the structural construction joint of subway tunnels

For the gas tightness ,water tightness and shock absorption of the joint of colorful contour plate,as well as the gas tightness,water tightness and shock absorption of the joint of the polycarbonate sheet engineering

For the bonding and sealing work for the assembly and installation of vehicles

For the waterproof and sealing work for the joint of the steel structure construction

The butyl rubber tapes that covers the aluminum foil is fit for the waterproofing and sealing for various of kinds of the roofing engineering,color steel,steel structure and waterproof roll and PC sheet which are exposed to the sunshine
Technological characteristics

Convenient and efficient construction:to use the butyl sealing tape,it shall be bonded once and for all ,and the surface of the base layer shall be clean

Broad requirement on construction environment :it can be operated normally within -15 degree centigrade and 45degree centigrade of environment temperature and below 80 percent of humidity,and it has strong environment suitability

Simple and reliable repair technology:for the large leakage part,only the single -face tape to be used

Instructions for use:

1. Clean up and dry the object surface before sticky.
2. Tear the protective film. Then stick the tape to the object surface.
3. Press the tape hard, to ensure the tape stuck firmly.

Detailed Photos

Product Parameters

Product features

Excellent mechanical properties:high bonding strength and tensile strength ,good elasticity and extension performance,strong adaptability of the shape change and crack of the interface ,and good ability to trace the shape change of the substance

Stable chemical properties:it's equipped with excellent chemical resistance ,weather fastness and corrosion resistance

Reliable application performance :excellent binding property ,water resistance ,leak tightness and low temperature resistance ,and high stability in size

Easy operation technology

Wide Usage

Packaging & Shipping

Installation Instructions

Construction method

Construction method of the new engineering of steel Structure roofing

Select the proper specification according to the shape of the metal plate or the gap and joint of the bonded pat and in line with the requirement of the engineering design

Clean the bonded part of the metal plate

Uncover the double-face rubber tape slowly from one end of the metal plate,and stick the sealing tape to the lap joint of the lower layer of metal plate along the straight line of the joint,then ,press the tape gently with your hand,so as to make it stick fast to the metal plate

Tear the release paper on the butyl sealing tape ,and press the metal plate on the upper layer of the interface into the bonded and sealed tightly

Fix and tight the screw ,and make the upper and lower bonding surface of the tape bonded tightly

Stipulations of construction

The stipulation apply to the sealing and waterproofing work of the roofing and metal plate of civil engineering structure that uses the rubber tape for the bonding the waterproof roll,metal contour plate,PC plate and other supporting materials

To design and use the rubber tape ,the relevant regulations and the enterprise standard of the company shall be followed

Company Profile

FAQ

1.Q : Are you a factory or trading company ?
A: We are a factory , can offer best quality product ,reasonable price and supply the stable quality adhesive tape for you.2
Q: Can you do OEM?
A: Yes, we can do OEM products. Send us your requirement details now.3
Q:How can I get some samples?
A: We are honored to offer you free samples. New clients are expected to pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for formal order.
4
Q:What about the payment?
A:30% deposit in advance, 70% balance againstcopy of B/L, by T/T, Cash or 100% LC at sight.
5
Q:What's our normal Trade Terms?
A:EXW, FOB, CIF, CNF, DDU, L/C ect.
6
Q:How long is the lead time?
A:Normally within 5-25 days after deposit received.
8
Q:How to control your quality?
A:All of our products can meet the UL,VW-1,MSHA,BS 2576 certificates.We have complete quality guarantee system: IQC FAS &Self checking for
each producing progress →OQC. And as below:
1). Before production: sending pre-production samples for checking.2). During production: sending mass production samples for checking again.3). Before shipment: customers' or the third parties' visit to our factory to check the quality directly or any inspection is welcome!4). After shipment: if there is any problem of our goods due to our mistake,we will surely be responsible for it.
9
Q:How to guarantee punctual shipment for my order?
A:We give priority to export orders and keep updating progress from production to delivery.
10
Q:If we don't have shipping forwarder in China, would you do this for us?
A:Yes, we can offer you best shipping line to ensure you can get the goods timely at best price
11
Q:How can we get detailed price list?
A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.
